Mi-BEAM Series: High Performance, Modular Bidirectional, Regenerative Programmable DC Power System, Battery Cycler & Simulation
| Model: Mi-BEAM Series Voltage: 600 to 2,000 V Current: 50 to 150A Power: 12.5 to 37.5kW Overview: High Performance, Modular Bidirectional, Regenerative, Programmable DC Power System, Battery Cycler & Simulation |
 |
-
Overview
-

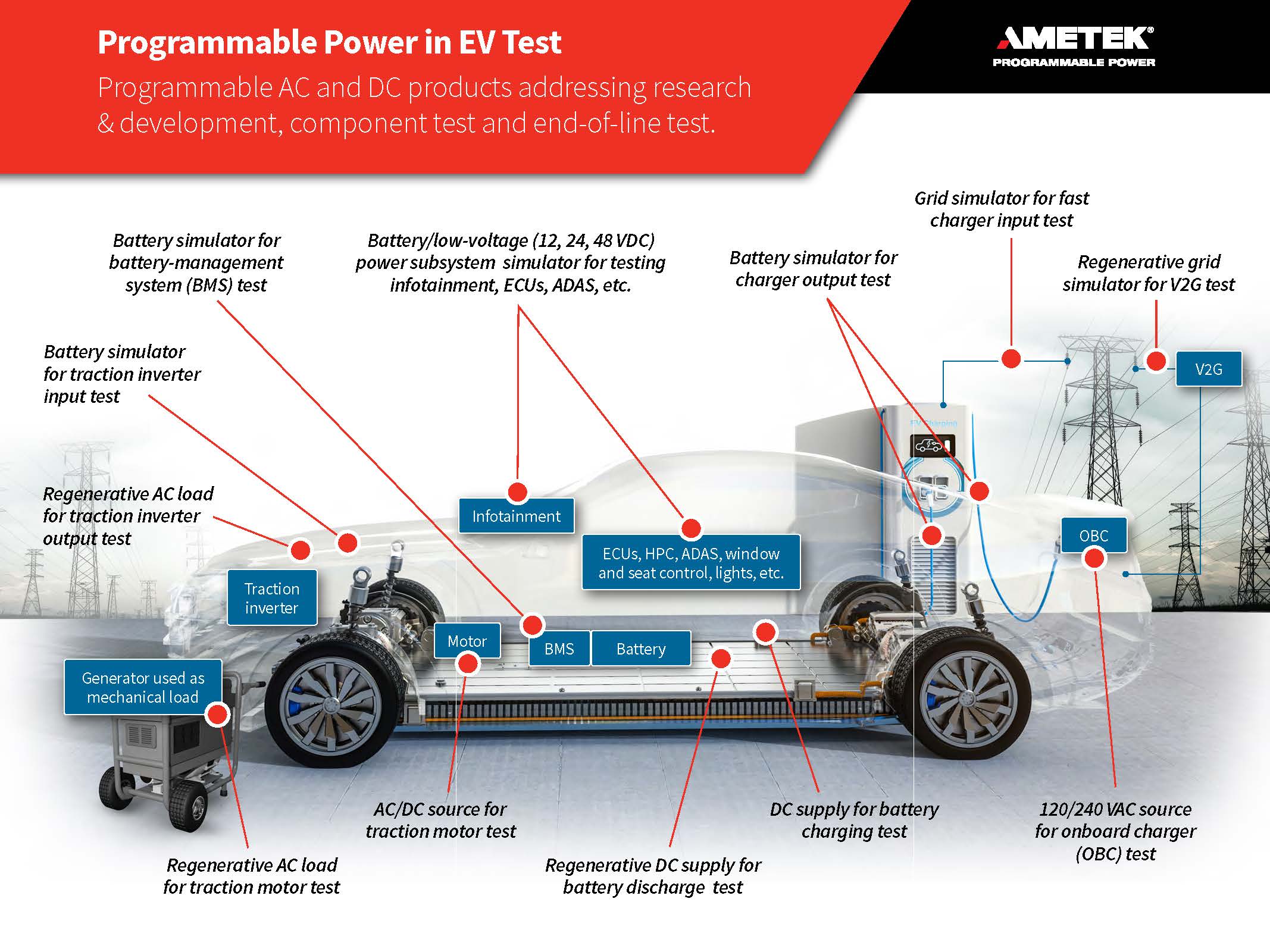

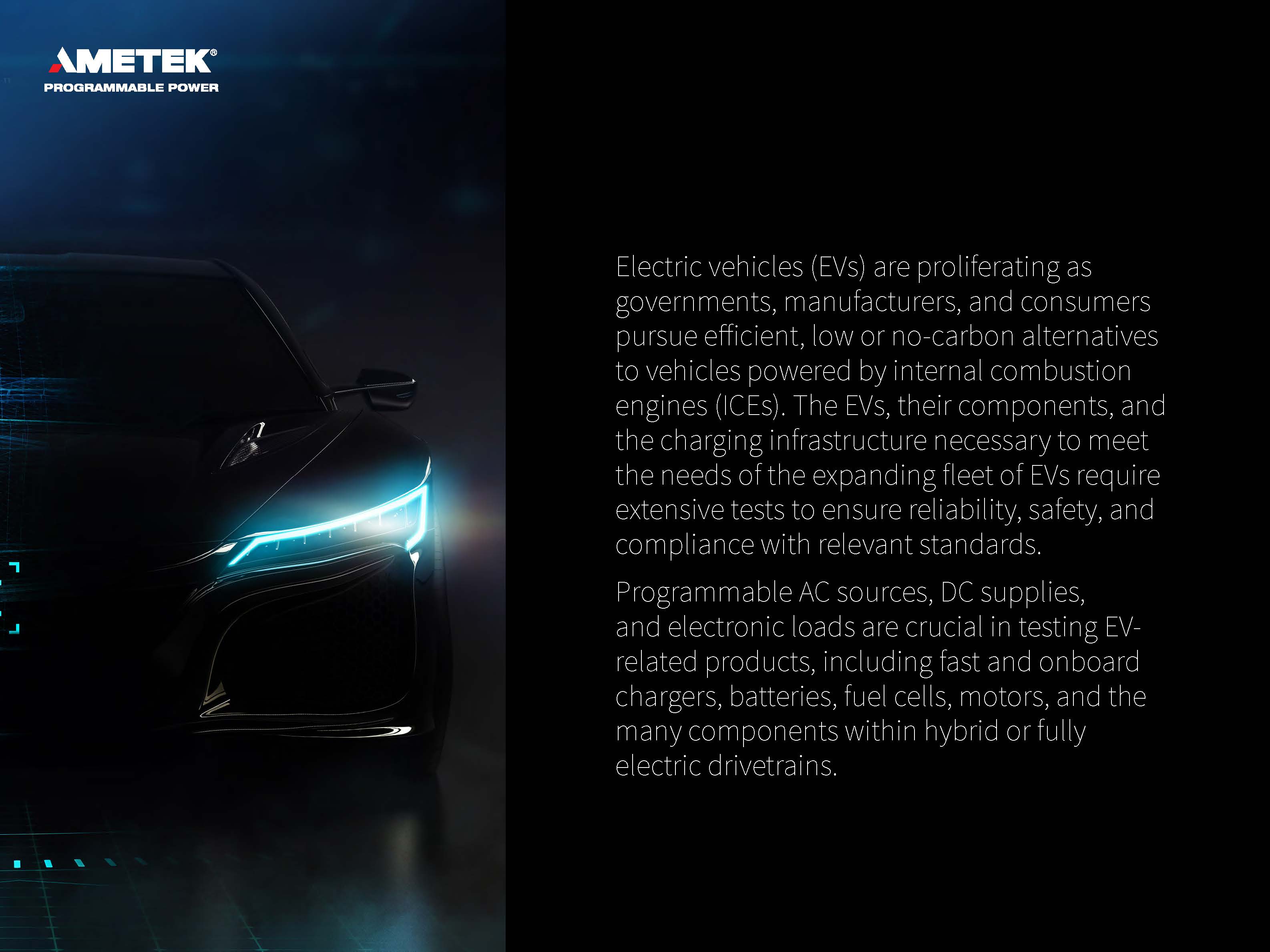

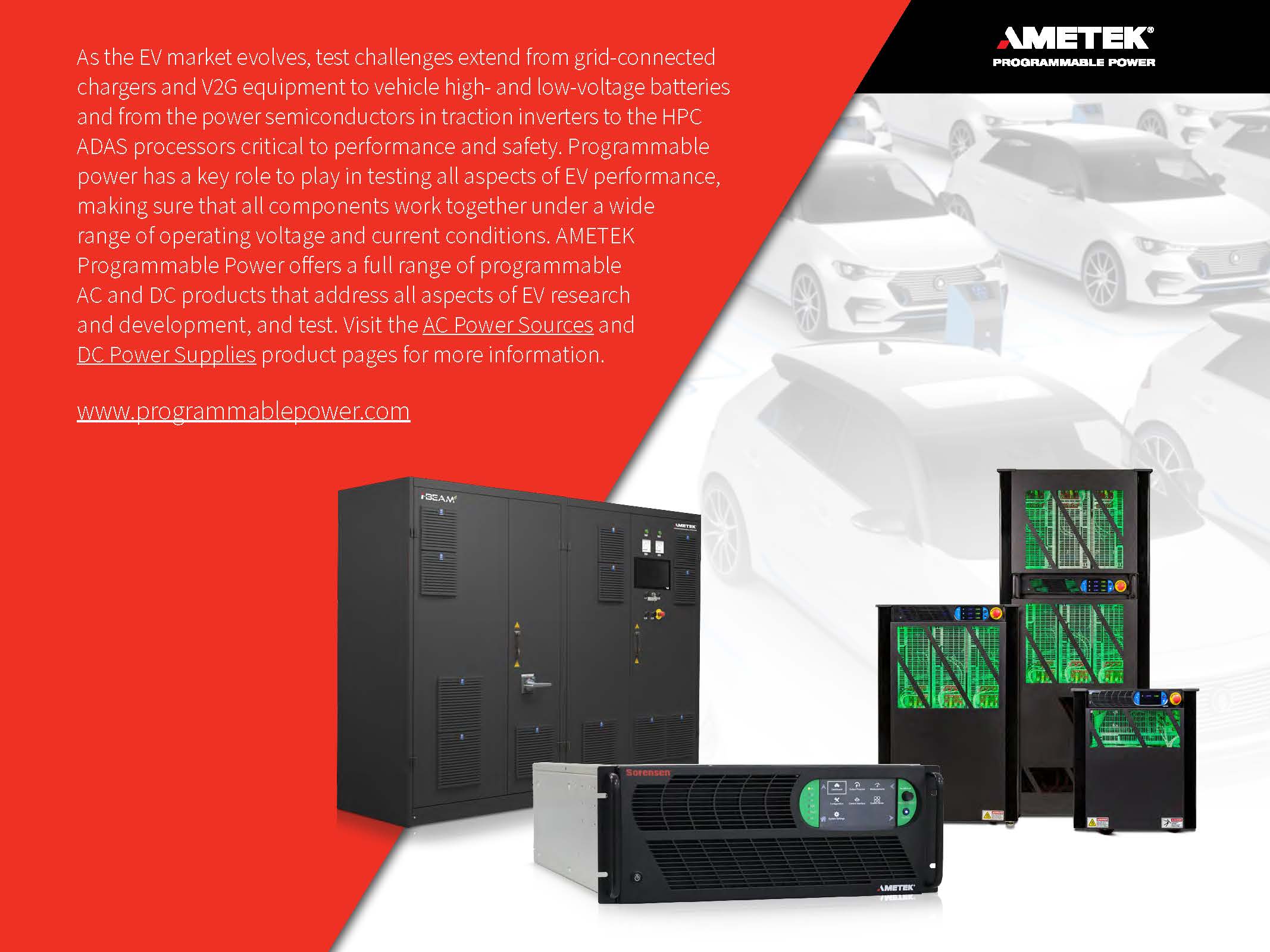

Infographic
-
Drivers
-
Manuals
-
Software
-
Data Sheets
-
Part No.
-
Videos
The Sorensen™ Modular Intelligent-Bidirectional Energy AMplified (Mi-BEAM) Series is the newest addition to the AMETEK Programmable Power portfolio of high-power testing solutions. The new Mi-BEAM Series features full DC source and sink capabilities with power levels from 12.5kW up to 37.5kW. The Mi-BEAM Series is fully scalable up to 1.2MW with parallel systems. The available voltage ranges of 600VDC and 2,000VDC in a 4U rack height chassis provide full power with up to 150A per channel.
Control via Front Panel Touchscreen and Digital or Analog Control Interfaces
The Mi-BEAM Series can be operated from the intuitive, front panel touchscreen that enables the user to easily setup, control and monitor the Output Programming Parameters, Supervisory and Set Point limits, Measurements, and System Settings. Additionally, a variety of standard communication control interfaces are available including; LAN, USB, CAN and RS-232 and Optional IEEE-488 are available.
Key Features:
- Complete solution - battery test, battery cycler, battery simulation, PV simulation & solar array simulator software included
- Highest power density up to 37 kW in 4U rack height (9.25 kW/U)
- Fastest and cleanest power available (fastest transient response and low output ripple and noise)
- Universal 3-Phase AC Input accepts 180 VAC to 528 VAC
- Longest manufacturer-based reliability guarantee: 5-year warranty
- Parallel system power up to 1.2 MW
- Output voltage up to 2,000 V
- Bidirectional output current up to ±150 A, up to ±4,800 A in parallel
- True extended wide-range autoranging output
- Regenerative to 95%
- Color touch panel user interface
- Seamless transition between source and sink
- Built-in islanding detection
Applications
The Mi-BEAM Series is designed for testing today’s complex, high power electronics for the automotive, energy storage, industrial, and aerospace markets in a variety of applications. This platform covers all test needs through the product life cycle from advance research and development (R&D), to design validation, and production test requirements.
Take a look at the Mi-BEAM cut sheet here and the Mi-BEAM data sheet here. Additionally, check out the Bidirectional Infographic here.
The Mi-BEAM Series is designed for testing today’s complex, high power electronics for the automotive, energy storage, industrial, and aerospace markets in a variety of applications. This platform covers all test needs through the product life cycle from advance research and development (R&D), to design validation, and production test requirements.
- Battery Simulation: Emulates battery behavior with programmable voltage, current, power and resistance to test BMS, converters, and battery-powered devices without physical batteries.
- Battery Cycling / Testing: Performs precise charge/discharge cycles for lifecycle testing, performance validation, and qualification of energy storage systems.
- Electric Powertrain Testing: Supports dynamic testing of EV powertrains with bidirectional current and regenerative capabilities for motor, inverter, and system-level validation.
- Fuel Cell Testing: Provides stable, programmable DC source/sink for simulating fuel cell operation under varying load conditions and validating system performance.
- Solar Inverter Testing: Delivers controlled DC input to test inverter efficiency, MPPT functionality, and fault response across a range of operating conditions.
- PV Simulation: Replicates solar panel output using programmable I-V curves to test inverters and hybrid systems under real-world irradiance and shading scenarios.
Take a look at the Mi-BEAM cut sheet here and the Mi-BEAM data sheet here. Additionally, check out the Bidirectional Infographic here.
Explore Mi-BEAM Series Related Resources
White Papers, Application Notes, and Guides
Mi-BEAM System: Step-by-Step How-to Tutorials
Bidirectional Programmable DC Power Supplies Augment Simulation and Test
Programmable Bidirectional, Regenerative DC Power Aids Battery, Inverter, Fuel-Cell, and Motor Test Across Multiple Industries
Powering a Smoother Ride with Programmable Testing
Blogs
Flexible Test Strategies Adapt to an Evolving EV Market
Simplify Semiconductor Testing with the Right DC Power Supply
Consider Product-Line Lifecycle when Selecting DC Programmable Power Supplies
Sorensen Mi-BEAM Labview SCPI Driver V1.0.0 - Labview 8.6 for Microsoft Windows 7/8/10 (32-bit, 64-bit)
Sorensen Mi-BEAM Labview SCPI Driver V1.0.0 - Labview 2015 for Microsoft Windows 7/8/10 (32-bit, 64-bit)
Sorensen Mi-BEAM Labview SCPI Driver V1.0.0 - Labview 2024 for Microsoft Windows 7/8/10 (32-bit, 64-bit)
Title
Document
Download
Sorensen Mi-BEAM Labview SCPI Driver V1.0.0 - Labview 8.6 for Microsoft Windows 7/8/10 (32-bit, 64-bit)
DocumentSorensen Mi-BEAM Labview SCPI Driver V1.0.0 - Labview 8.6 for Microsoft Windows 7/8/10 (32-bit, 64-bit)
Download Download
Sorensen Mi-BEAM Labview SCPI Driver V1.0.0 - Labview 2015 for Microsoft Windows 7/8/10 (32-bit, 64-bit)
DocumentSorensen Mi-BEAM Labview SCPI Driver V1.0.0 - Labview 2015 for Microsoft Windows 7/8/10 (32-bit, 64-bit)
Download Download
Sorensen Mi-BEAM Labview SCPI Driver V1.0.0 - Labview 2024 for Microsoft Windows 7/8/10 (32-bit, 64-bit)
DocumentSorensen Mi-BEAM Labview SCPI Driver V1.0.0 - Labview 2024 for Microsoft Windows 7/8/10 (32-bit, 64-bit)
Download Download
Title
Document
Download
Mi‐BEAM Series External CAN Programming Manual M580793-01 Rev A
DocumentMi‐BEAM Series External CAN Programming Manual M580793-01 Rev A
Download Download
Mi-BEAM Programming Manual M587352-01 REV A
DocumentMi-BEAM Programming Manual M587352-01 REV A
Download Download
Mi‐BEAM Series Operations Manual M587351-01 Rev C
DocumentMi‐BEAM Series Operations Manual M587351-01 Rev C
Download Download
Title
Document
Download

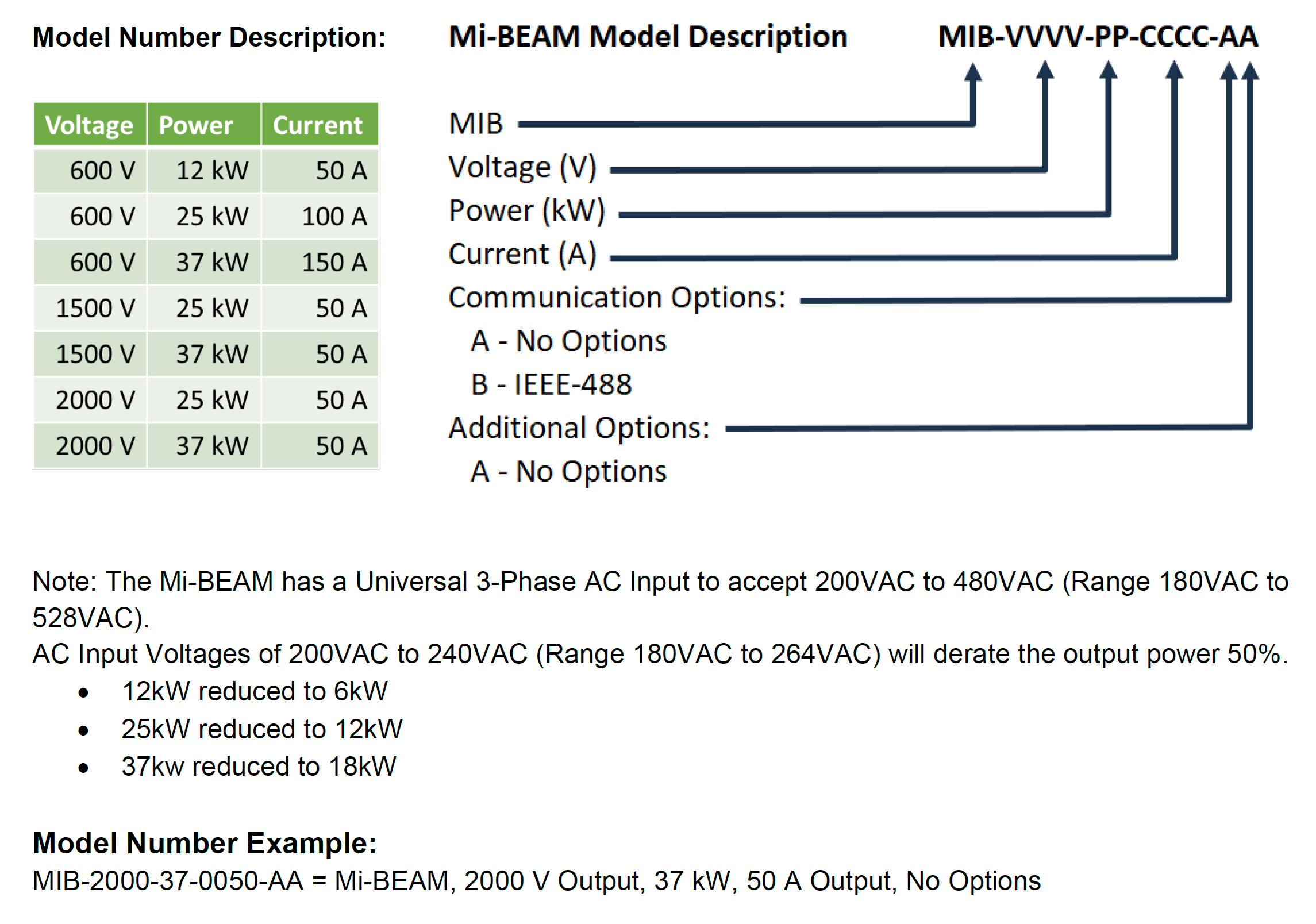

Order Information
